    奥林巴斯楔块，奥林巴斯楔块，奥林巴斯楔块

    产品型号： 奥林巴斯楔块
    品  牌： 奥林巴斯
    • ≧1 台
      ￥5000.00
    所 在 地： 上海嘉定区
    更新日期： 2025-04-02
    详细信息
    | 询价留言
    奥林巴斯楔块，奥林巴斯楔块，奥林巴斯楔块

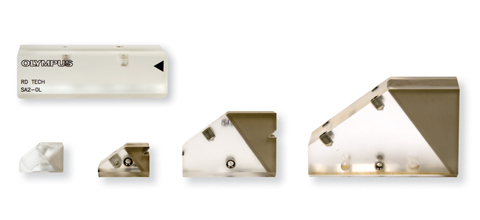

    相控阵探伤仪探头楔块，奥林巴斯Olympus楔块

    楔块




    Part Number Item Number Probe Type Nominal Refracted Beam Angle
    (in Steel)    		 Recommended Sweep (°) Probe Orientation Wedge Dimensions (mm)
    L W W* H
    SA00-0L U8720002 A00 0° LW −30 to 30 Normal 16 12 N/A 12
    SA00-N45S U8720006 A00 45° SW 30 to 60 Normal 21 12 N/A 13
    SA00-N60S U8720008 A00 60° SW 45 to 70 Normal 21 14 N/A 13
    SA0-0L U8720004 A0 0° LW −30 to 30 Normal 23 12 N/A 11
    SA0-N45S U8720012 A0 45° SW 30 to 60 Normal 32 18 N/A 20
    SA0-N60S U8720014 A0 60° SW 45 to 70 Normal 32 18 N/A 21
    SA1-0L U8720016 A1 0° LW −30 to 30 Normal 29 30 10 20
    SA1-N60S U8720036 A1 60° SW 30 to 70 Normal 30 30 40 16
    SA1-N60L U8720032 A1 60° LW 45 to 70 Normal 28 30 40 21
    SA1-L45S U8720024 A1 45° SW −30 to 30 Lateral 45 35 45 27
    SA2-0L U8720082 A2 0° LW −30 to 30 Normal 65 30 40 20
    SA2-N60L U8720135 A2 60° LW 30 to 70 Normal 79 30 40 50
    SA2-N55S U8720096 A2 55° SW 30 to 70 Normal 69 30 40 43
    SA3-0L U8720139 A3 0° LW −30 to 30 Normal 38 37 50 20
    SA3-N45S U8720143 A3 45° SW 30 to 60 Normal 55 37 50 30
    SA3-N45L U8720141 A3 45° LW 30 to 60 Normal 55 37 50 49
    SA3-N60S U8720147 A3 60° SW 45 to 70 Normal 58 37 50 32
    SA3-N60L U8720145 A3 60° LW 45 to 70 Normal 53 37 50 40
    SA4-0L U8720149 A4 0° LW −30 to 30 Normal 59 47 55 20
    SA4-N45S U8720153 A4 45° SW 30 to 60 Normal 90 47 55 51
    SA4-N45L U8720151 A4 45° LW 30 to 60 Normal 88 47 55 85
    SA4-N60S U8720157 A4 60° SW 45 to 70 Normal 86 47 55 45
    SA4-N60L U8720155 A4 60° LW 45 to 70 Normal 83 47 55 68
    SA5-0L U8720159 A5 0° LW −30 to 30 Normal 38 45 55 20
    SA5-N45S U8720163 A5 45° SW 30 to 60 Normal 57 47 55 37
    SA5-N60S U8720169 A5 60° SW 45 to 70 Normal 46 43 55 25
    SA5-N60L U8720167 A5 60° LW 45 to 70 Normal 39 50 55 41
    SA10-0L U8720544 A10 0° LW −30 to 30 Normal 25 23 40 20
    SA10-N55S U8720545 A10 55° SW 30 to 70 Normal 23 23 40 14
    SA10-N60L U8720546 A10 60° LW 30 to 70 Normal 26 23 40 30
    SA11-0L U8720553 A11 0° LW −30 to 30 Normal 35 23 40 23
    SA11-N55S U8720547 A11 55° SW 30 to 70 Normal 41 23 40 29
    SA11-N60L U8720548 A11 60° LW 30 to 70 Normal 43 23 40 53
    SA12-0L U8720549 A12 0° LW −30 to 30 Normal 62 23 40 20
    SA12-N55S U8720550 A12 55° SW 30 to 70 Normal 58 23 40 23
    SA12-N60L U8720551 A12 60° LW 30 to 70 Normal 61 23 40 53
    SA14-0L U8721079 A14 0° LW −30 to 30 Normal 80 23 40 20
    SA14-N55S U8720997 A14 55° SW 30 to 70 Normal 96 23 40 49
    SA15-N60S U8721094 A15 60° LW 35 to 70 Normal 18 22 N/A 12
    SA16-N55S-IHC U8721469 A16 55° SW 30 to 70 Normal 85 31 40 44
    SAWS1-N60S U8720552 AWS1 60° SW 45 to 70 Normal 45 38 N/A 32
    SAWS1-0L U8720706 AWS1 0° LW -30 to 30 Normal 38 38 N/A 40
    SNW1-0L U8700264 NW1 0° LW N/A Normal 66 32 32 22
    SNW1-0L-WP5 U8720637 NW1 0° LW N/A Normal 66 32 32 22
    SNW1-0L-IHC-C U8700266 NW1 0° LW N/A Normal 66 32 32 22
    SNW2-0L U8720924 NW2 0° LW N/A Normal 26 32 32 22
    SNW2-0L-WP5 U8720596 NW2 0° LW N/A Normal 26 32 32 22
    SNW3-0L U8721184 NW3 0° LW N/A Normal 130 32 32 22
    SNW3-0L-WP5 U8721219 NW3 0° LW N/A Normal 130 32 32 22
    SPWZ1-0L U8700336 PWZ1 0° LW -30 to 30 Normal 75 30 40 20
    SPWZ1-N55S REV-C U8700336 PWZ1 55° SW 30 to 70 Normal 87 30 40 45
    SPWZ3-0L U8700361 PWZ3 0° LW -30 to 30 Normal 40 30 40 20
    SPWZ3-N55S U8700365 PWZ3 55° SW 30 to 70 Normal 65 30 40 38
    SPWZ3-N60L U8721399 PWZ3 60° LW 45 to 70 Normal 64 30 40 35
    *: Width with IHC wedge option

    用于曲面阵列探头的水浸切角    楔块



    用于曲面阵列探头的水浸角形楔块具有特殊的半径和角度，其半径可调以适用于各种被测工件。这些楔块的设计目的是用于手动扫查，并配合袖珍轮式编码器一起使用。

    Part Number Item Number Probe Type Angle of the Inspected Part (º) Radius Range
    mm (in.)    		 Inspection Type
    SR1-I81-ADJ U8720659 R1 81 4 to 14 (0.16 to 0.55) ID
    SR1-I90-ADJ U8720638 R1 90 3 to 14 (0.12 to 0.55) ID
    SR1-I98-ADJ U8720660 R1 98 3 to 13 (0.12 to 0.51) ID
    SR4-IE90-ADJ U8720608 R4 90 3 to 20 (0.12 to 0.79) OD/ID
